Redirect Payment Checkout Subscription
Request URL: POST
/checkout/subscription
1. The checkout interface will be opened upon a successful request.
2. After the user makes a payment, they will be redirected to the page specified by the callbackUrl. If the payment fails, it indicates the end of this payment process. If the payment is successful, it means the user's subscription has been completed.
3. Whether the subscription is successful or not, an asynchronous notification will be sent to the interface address specified by the notificationUrl.
Request Parameters
| Parameter | Type | Required | Description |
|---|---|---|---|
transactionId | String(128) | Required | Merchant unique transaction ID, generally used to prevent repeated submission of one order |
orderId | String(128) | Required | Merchant order ID, can be repeated but only one successful transaction exists |
currency | String(3) | Required | Currency (Example: CNY/USD) |
amount | Number(12,3) | Required | Transaction amount |
transactionIp | String(128) | Required | Cardholder transaction IP |
appId | Number(20) | Required | System -> Website App -> APP |
callbackUrl | String(255) | Required | 3D/Checkout callback URL (Generally used for page display logic, such as redirecting to the original product page) |
notificationUrl | String(255) | Required | Asynchronous notification URL, if this parameter is not empty, a notification will be sent to this address after the transaction is completed (usually used to process order status) |
productInfos | Array | Required | Product information (ProductInfo Details) |
transactionMethod | String(32) | Optional | Payment method, default is Default (Payment Method Details ,Partial payment support) |
extension | Object | Required | Important Subscription Parameter, please refer to Subscription Details |
billingAddress | Object | Required | Note: Country field is required Billing information (BillingAddress Details) |
shippingAddress | Object | Optional | Shipping information (ShippingAddress Details) |
secure | Boolean | Optional | Whether to request 3D transaction, true for 3D transaction,This parameter does not relate to Google Pay™. |
browser | Object | Conditionally Required | Required for 3D transaction, Request browser parameters (Browser Details) |
Request Example
json
{
"transactionId": "123456",
"currency": "USD",
"amount": "8.88",
"appId": "123456",
"callbackUrl": "https://domain/callback",
"notificationUrl": "https://domain/notification",
"transactionIp": "127.0.0.1",
"productInfos": [
{
"productName": "Stonebriar Unscented Tea Light Candles with 6-7 Hour Burn Time - White, Pack of 100",
"currency": "USD",
"price": "8.88",
"sku": "123-456-789",
"quantity": 1,
"productLink": "https://domain/123-456-789"
}
],
"billingAddress": {
"firstName": "Gross",
"lastName": "Schmidt",
"country": "CA",
"email": "[email protected]",
"city": "Longueuil",
"address": "3226 rue Saint-Charles",
"phone": "450-928-5752",
"state": "Quebec",
"zipCode": "J4H 1M3"
},
"shippingAddress": {
"firstName": "Gross",
"lastName": "Schmidt",
"country": "CA",
"email": "[email protected]",
"city": "Longueuil",
"address": "3226 rue Saint-Charles",
"phone": "450-928-5752",
"state": "Quebec",
"zipCode": "J4H 1M3"
},
"browser": {
"userAgent": "Mozilla/5.0 (Windows NT 6.1; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/83.0.4103.24 Safari/537.36 Edg/83.0.478.18",
"referer": "https://www.domain.com"
},
"extension": {
"subscriptionCycle": "WEEK",
"subscriptionPeriod": 3,
"subscriptionDescription": "Subscription Description"
}
}Response Example
Request Success -> Redirect to check out using redirectUrl parameter
json
{
"code": 301,
"isTest": true,
"appId": 123456,
"uniqueId": "1669548151356891137",
"billDescription": "*Description",
"message": "order processing",
"timestamp": 1686886273516,
"transactionAmount": "8.88",
"transactionAt": "2023-06-16 11:31:12",
"transactionCardNumber": "420000******0000",
"transactionCurrency": "USD",
"transactionId": "123456",
"transactionMessage": "Redirect",
"redirectUrl": "https://domain/checkout/2200040333507540993"
}After the request is successful, use the redirectUrl to jump to 3D
json
{
"code": 301,
"isTest": true,
"appId": 123456,
"uniqueId": "1669548151356891137",
"billDescription": "*Description",
"message": "order processing",
"timestamp": 1686886273516,
"transactionAmount": "8.88",
"transactionAt": "2023-06-16 11:31:12",
"transactionCardNumber": "420000******0000",
"transactionCurrency": "USD",
"transactionId": "123456",
"transactionMessage": "Redirect",
"redirectUrl": "https://domain/redirect/a6354c630cba488caa56a0113bb0ef34"

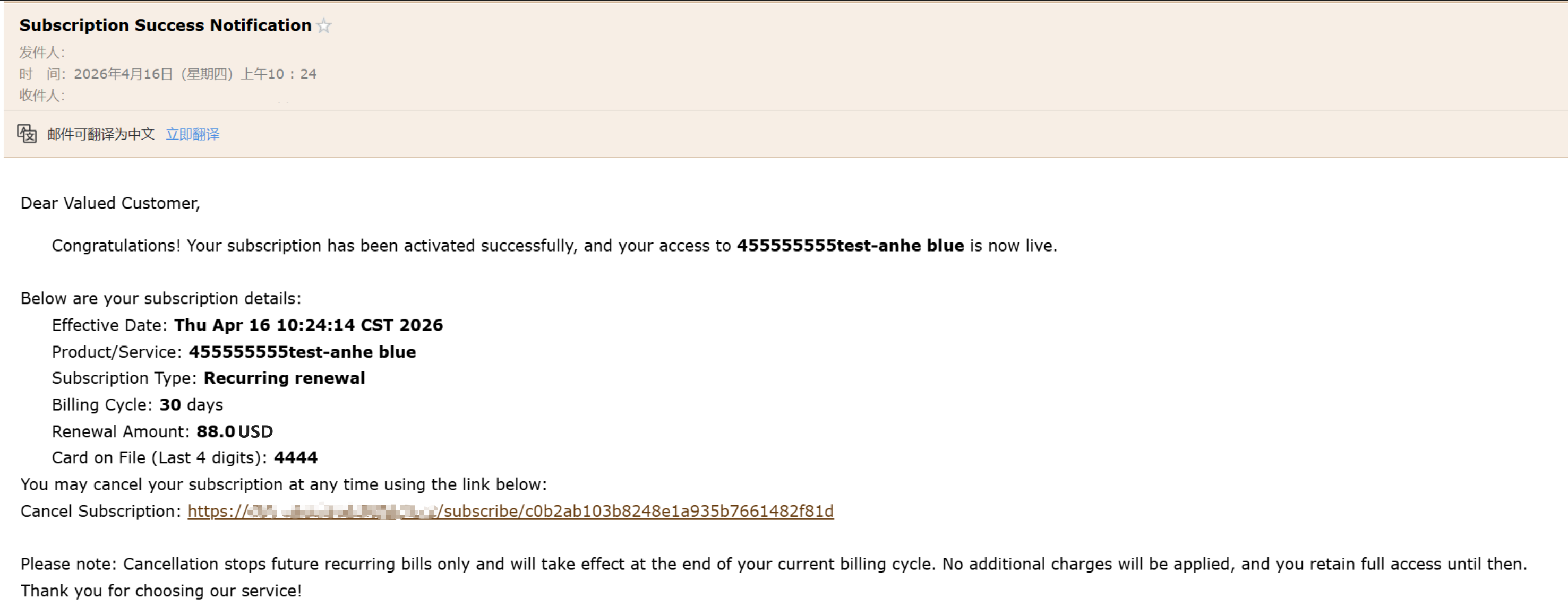

}User request for subscription successfully received email template

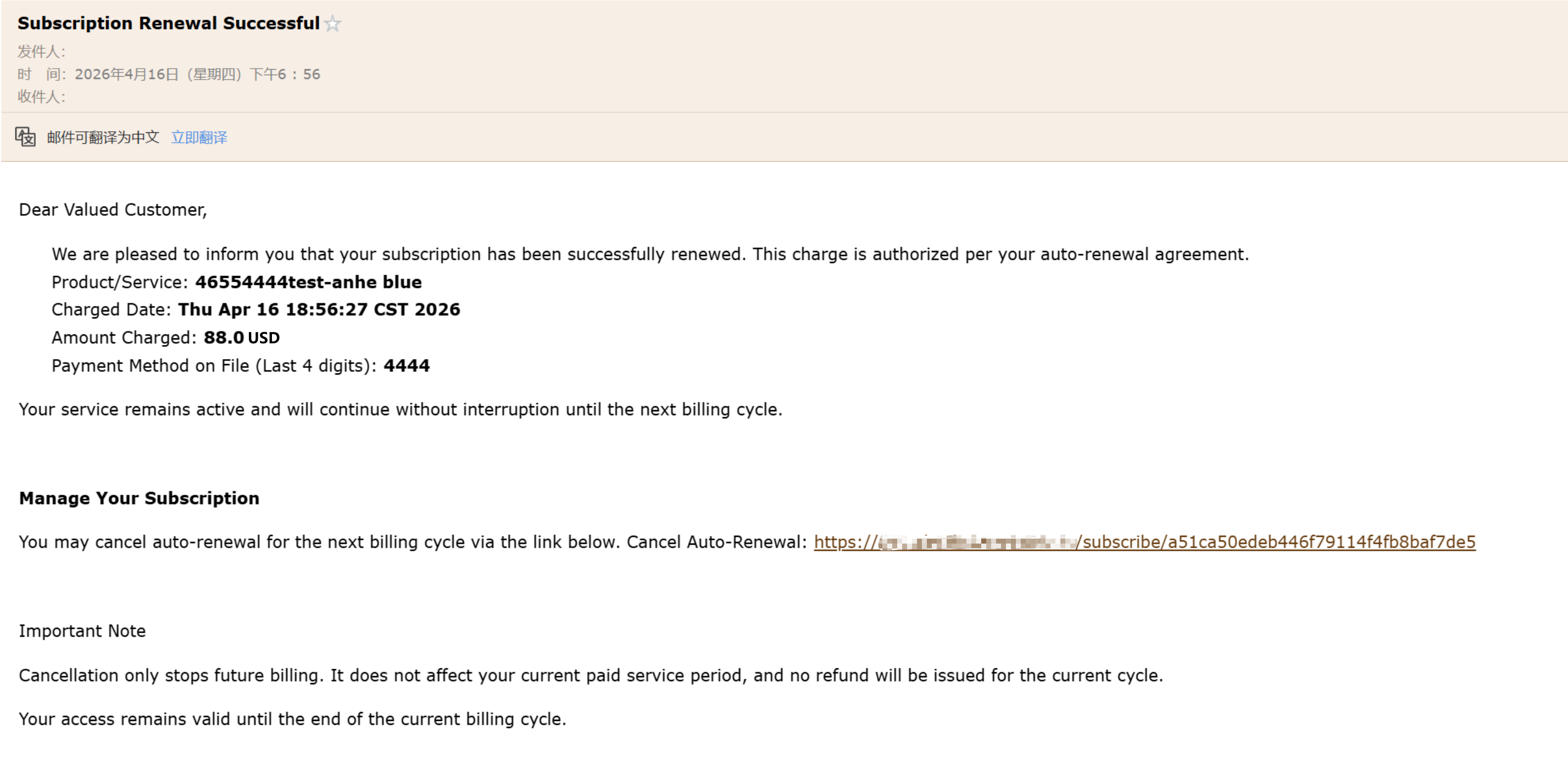

User's subsequent subscription fee deduction email template
Request Failed
json
{
"code": 101,
"isTest": true,
"appId": 123456,
"uniqueId": "1669548151356891137",
"billDescription": "*Description",
"message": "transaction failed",
"timestamp": 1686886273516,
"transactionAmount": "8.88",
"transactionAt": "2023-06-16 11:31:12",
"transactionCardNumber": "420000******0000",
"transactionCurrency": "USD",
"transactionId": "123456",
"transactionMessage": "Do not honor"
}Users will not receive emails after failure
